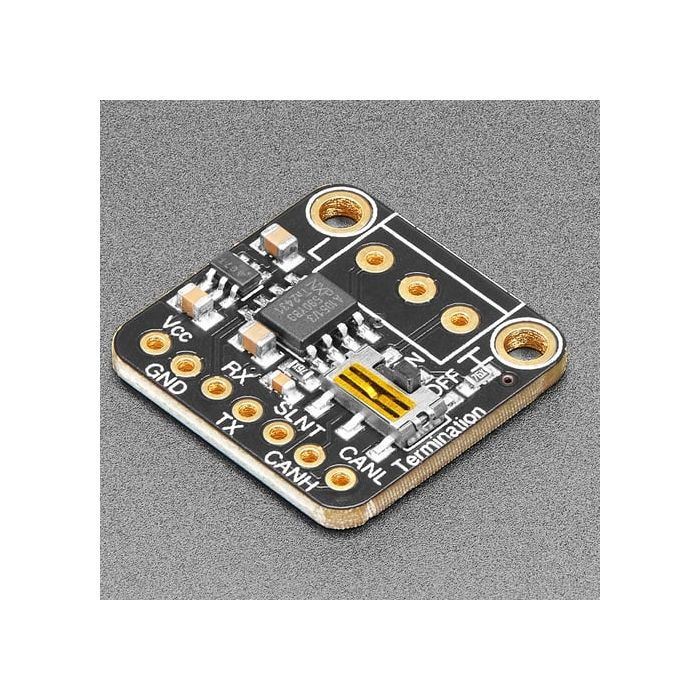

CAN Pal - CAN Bus Transciever - TJA1051T/3
CAN Pal - CAN Bus Transciever - TJA1051T/3
Artikelnummer: ADA-5708
Op voorraad
sku ADA-5708
Product omschrijving
Can Pal is een 12V- en 24V-CAN-Bus-Transceiver, geoptimaliseerd voor snelheden tot 5 Mbps.
Als u een board met native CAN Peripherals wilt aansluiten op een standaard CAN-bus, converteert de Adafruit CAN Pal Transceiver de 3 V logische signaalniveau's naar gebalanceerde CAN logische niveaus.
Adafruit heeft een paar leuke extra's aan dit breakout bboard toegevoegd om hem bruikbaar te maken in veel voorkomende CAN-scenario's.
Meer informatie is beschikbaar op de website van Adafruit.
<li>TJA1051/T3 can communicate with 3.3V~5V logic for use with modern microcontrollers.</li>
<li>5V charge-pump voltage generator, so even though you are running 3.3V power and logic on most modern microcontroller boards, it will generate a nice clean 5V as required by the transceiver.</li>
<li>3.5mm terminal block that can be soldered in to get quick access to the High and Low data lines as well as a ground pin.</li>
<li>2 x 60 ohm termination resistor on board (120 ohm in series), you can remove or activate the termination easily by flipping the onboard switch.</li>
<li>Fully ISO 11898-2:2003 compliant.</li>
<li>Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase.</li>
<li>Suitable for 12 V and 24 V systems.</li>
</ul>
