Product omschrijving

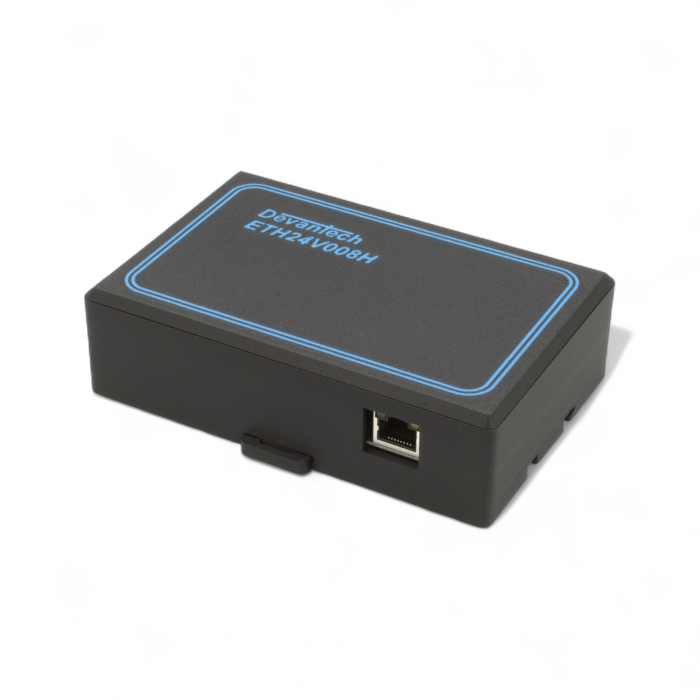

The ETH24V008H provides eight high-side switched outputs with a current rating of up to 1.5A suitable for switching resistive, inductive or capacitive loads. Ideal for solenoids, relays, valves and more. If the output is turned off the channel can be used as a 24vdc input.
The module is controlled over Ethernet using simple TCP/IP commands or MQTT.
Digital inputs can be configured to remotely control outputs on another ETH series modules or to send emails. Configuration and test is done via an internal webpage.
Free Android and iPhone Apps are available to remotely control this module.
The module is powered from a 24vdc supply. The power supply should be capable of powering the loads plus 200mA for the module.
The ETH24V008H is supplied with its DIN mountable case.
More information is available on the website of Devantech.
