reTerminal E10-1 - Expansion Board

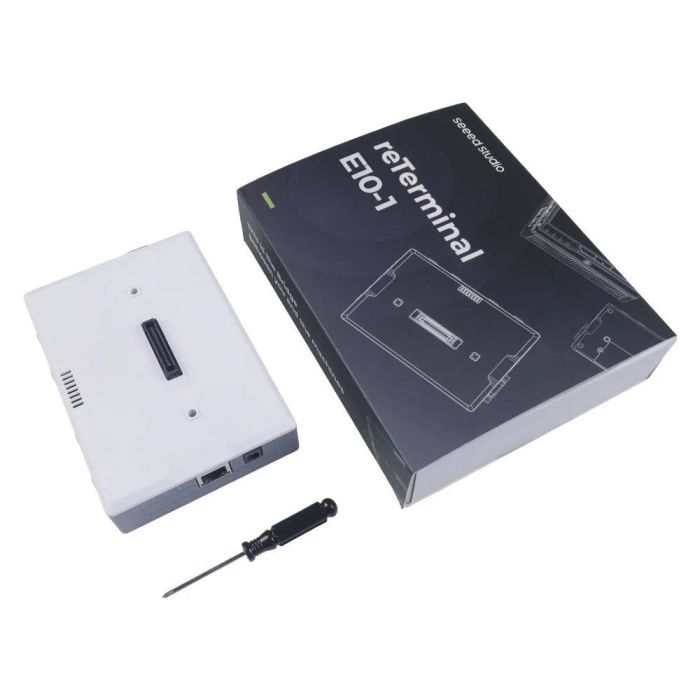

The reTerminal E10-1 is an expansion board for the reTerminal which empowers it rechargeable and portable functions, enhanced wireless communication and industrial data transmission along with audio capability.

The reTerminal E10-1 is an expansion board and fully compatible with the reTerminal where they can be simply connected through the industrial high-speed signal connector right in the middle of the board. It applies the charge-discharge function for the reTerminal by equipping the UPS-18650 dual chargeable battery and connecting the DC jack power interface. Furthermore, there has been equipped with a Power over Ethernet(POE) module on the board, thereby the reTerminal E10-1 can be also charged through the Gigabit Ethernet RJ45 connector.

The board supports the reTerminal transmitting the data through the industrial interface like DB9 Connector for RS-232 and integrated 6 Pin Terminal Connector for RS485 and CAN. Meanwhile, there are high-function mini-PCIe and M.2 B Key connectors on the board, which helps the reTerminal to apply LoRaWAN and LTE wireless function and SSD storage ability. Additionally, with an onboard card slot, it can also contribute to the reTerminal to transfer data through 4G/5G communication.

More information is available on the website of Seeed Studio.
